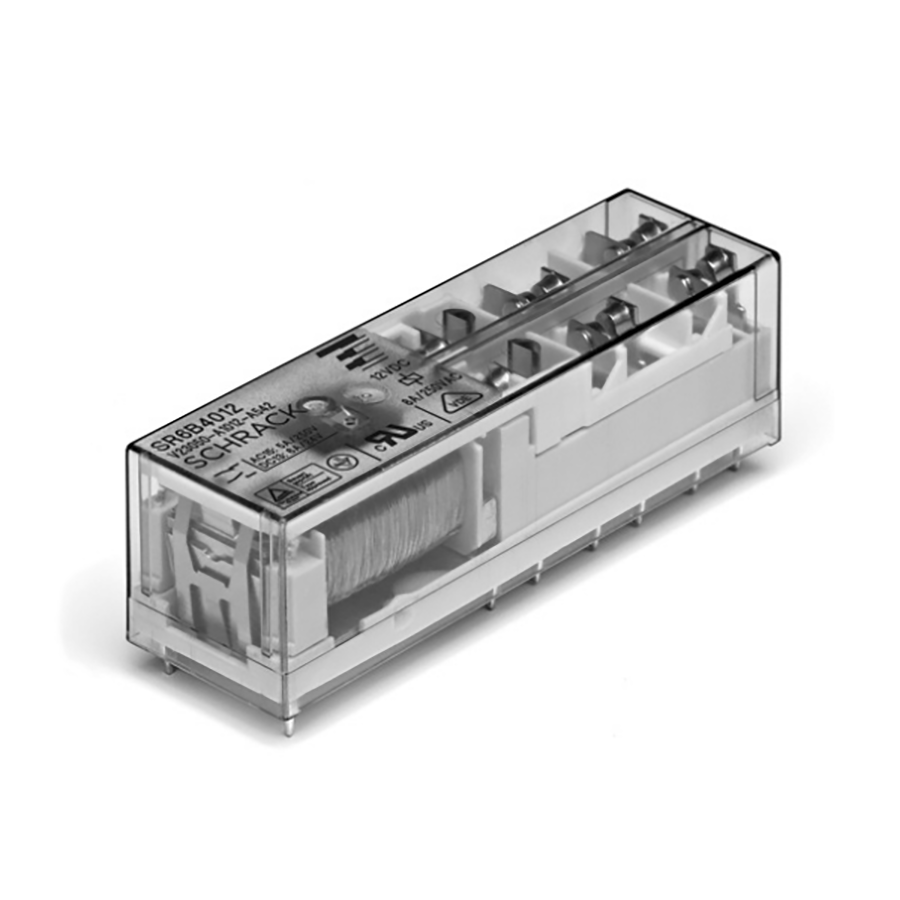

1393260-7
Manufacturer:
TE Connectivity
Mfr.Part #:
1393260-7
Datasheet:
Description:
Relays Through Hole Coil Current:50 mA Contact Current Rating:8 A 4PST, 6PST, DPST Coil Voltage (DC):24 V Coil Voltage (AC):24 V 1.2 W
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | |
| Length | 55 mm |
| Width | 55 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Number of Pins | 14 |
| Height | 16.5 mm |
| Circuit Type | 4PST-NO (DM) (4 Form X) |
| Packaging | Box |
| Voltage Rating | |
| Depth | 16.5 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Ratings | IP67 |
| Contact Material(Contact Finish) | Silver Tin Oxide (AgSnO) |
| Current Rating | 8 A |
| Max Current Rating | 8 A |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | |
| Number of Contacts | 6 |
| Ambient Temperature Range High | 70 °C |
| Throw Configuration | 4PST, 6PST, DPST |
| Max Voltage Rating (AC) | 400 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 50 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 480 Ω |
| Contact Current Rating | 8 A |
| Coil Voltage | 24 VDC |
| switching current | 8 A |
| Termination Style | Solder |
| Switching Voltage | 400 VAC |
| Coil Power | 1.2 W |
| Coil Voltage (AC) | 24 V |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Must Operate Voltage | 18 V |
| Must Release Voltage | 2.4 V |
| Contact Form | 6PST-4NO/2NC (4 Form A, 2 Form B) |
Stock: 114
Distributors
pcbx
pcbxUnit Price$8.54774
Ext.Price$8.54774
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $8.54774 | $8.54774 |
| 10 | $7.84426 | $78.44260 |
| 25 | $7.74229 | $193.55725 |
| 50 | $7.64165 | $382.08250 |
| 100 | $7.54233 | $754.23300 |
